2400mm LED Linear Lighting System , 19200lm commercial LED lighting

Product Categories
Shenzhen Coreshine Optoelectronics Co.,Ltd
Contact Now

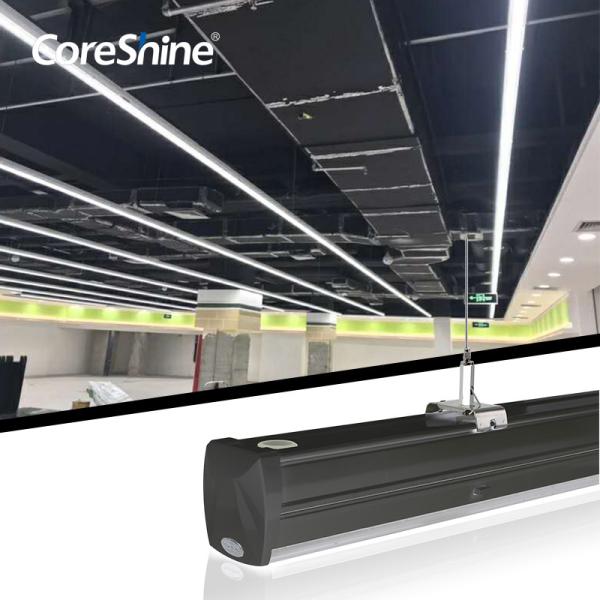

2400mm LED Linear Lighting System , 19200lm commercial LED lighting

  • 1
  • 2

Brand Name : CoreShine

Model Number : CFL-xxxx-X1X2-X3WH

Certification : UL, LVD, CE, ENEC, TUV, SAA, C-TICK, CB, GS, VDE, ETL

Place of Origin : Guangdong, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 25000-30000 pcs/month

Delivery Time : 5-8 working days

Packaging Details : one set in one box (1678*170*92mm)

Item : Led Linear Trunking System

Light Source : smd2835

CRI (Ra>) : 80

UGR : <19

PF : >0.95

THD : <15%

Lumen : 4800lm-19200lm

Driver : Coreshine/Rubycon

Contact Now

Continuous Led Linear Lighting System for Industry, Commercial and other Applications

LED linear light is exclusively designed for designers and architects with imagination and personal style.LED linear light adopt premium aluminum profile, different dimension, and size, easy to install. 2 types of installations method: suspended type, and embedded type, and different customized dimensions are also acceptable, which can meet install location requirements of different fields and occasions.

  • FEATURES
  1. 4 COLOR SELECTABLE - Each led linear shop lights have a simple to use switch on the interior of the fixture that can change your lights to 3000K soft white, 4000K cool white, or 5000K bright white. Your space will be adjustable through 3 color temperatures until you find the perfect light that works for you.
  2. BRIGHTEST - Get the most out of your surface mount LED ceiling light with a fixture that produces 4800 lumens of crisp, crystal clear lighting while only using 30 watts of energy. You'll be able to brighten more of your space compared to traditional fluorescent tube lights and also have the modern appeal of the slim design each utility light offers.
  3. DIMMABLE - With the use of a 1-10V dimmer or DALI, you'll be able to control the brightness of your 36" flush mount lights with it's smooth dimming feature that can be reduced from 100% to 10% lighting output. Take control of your garage lighting that will dim down to your preferred setting without flickering or issues, so you can enjoy a pleasant atmosphere every time.
  4. CONTINUOUS LIGHT - Constructed to provide smooth, uninterrupted lighting for an astounding 50,000 hours of a lifetime which means no replacement will be needed for the next 5 years. Each LED light fixture lasts longer than traditional 3' fluorescent light bulbs which means less time worrying about changing your lights. With a damp location rating, these overhead light fixtures are ideal for garages, workshops, supermarkets, offices, and any indoor location.
  5. RELIABLE LIGHTING - Zero flickering light, zero delay, and zero worries with modern linear LED shop lights that provides high quality indoor lighting with a 4 cct color temperature adjustable switch attached to each light. Every 1500mm LED shop light is simple to install, DLC listed and damp location rated for reliability, ETL listed for your safety, is 120-277V hardwire compatible, has a 60-degree 90-degree 120-degree beam angle, can be surface mounted to your ceiling, and backed by a 5 YEAR WARRANTY.​

  • DETAILS
Item: Led Linear Light Trunking System
Style: S-Line Material: Aluminum Alloy + PMMA lens / PC cover
Length: 1200mm, 1500mm, 2400mm, 3000mm Light Source: Smd2835 (Everlight/Samsung)
Trunking: 600mm, 1200mm, 1500mm, 2400mm, 3000mm Input Voltage: AC220-240VAC/100-277VAC
UGR: <19 CRI (Ra>): 80/95
Beam Angle: 25°;60°;90°;120°; Asymmetric; Double Asymmetric CCT: 3000K/4000K/5000K/6000K
PF: >0.95 THD: <15%
Lumen: 4800lm-19200lm Dimming: DALI, 1-10V, DIMswitch
Driver: Coreshine/Rubycon Color: White, Black, Silver
IP Rating: IP20 Light Color: Warm White, White, Cold White
Efficiency: 160lm/w, 180lm/w Power: 35W,50W,65W,70W,100W,150W...
Warranty: 5 years Lifespan: 50000 hours
Installation Chain, Cord, Rod, Surface Mounted Connector L/T/X Node Connector can be choose
Function Dimmable (DALI/1-10V), Emergency, Sensor, Track Spot Light
Switch Type: Motion Sensor Switch Shipping: DHL/UPS/FEDEX/TNT...
Applications: Supermarket, Warehouse, Office, Stores, Shops, Commercial and Industrial Projects...

  • APPLICATIONS
Suitable for Supermarket, Warehouse, Workshop, Office, Car Parking, Schools, Classroom, Colleges, Hotels, Factories, Commercial Purposes, Industrial Projects, Institution Buildings, Universities, Hospitals, and other Architectural places that need energy saving and high color rendering index lighting.
  • Returns of Investment COMPARISON

We did a comparison test between Coreshine S-line and LED tube in the 300m² of warehouse

300 sq.m
Unite S-Line LED Tube
Lighting Effect lm/w 160 100
Qty of Luminaire set 600 960
Total Power Consumption KW 30 48
Unite Price of Electric CNY/KWH 1.5
Light Time Hour/Day 1.2
Electric bill/day CNY 540.00 864.00
Electric bill/month CNY 16,200.00 25,920.00
Electric bill/year CNY 194,400.00 311,040.00
Save the cost per year CNY 116,640.00

  • FAQ

Q1: Are you a factory?
A: Yes, we are a professional manufacture focus on LED lighting which widely used in Supermarkets, Warehouses, Stores, Museums, etc.

Q2: How do you offer samples?
A: Samples for charge with shipping cost paid by the clients

Q3: What is your delivery time?
A: Sample order: 3-7 working days
Mass order: 12-18 working days after 30% deposit received

Q4: What is your warranty?
A: We offer 5 year warranty for the products.

Q5: Can your factory make the lights based on customers' design?
A: Yes, we offer OEM and ODM service, we have professional engineers to design and produce according to your requirement.

Q6:Where is your factory? How can I get there?
A: Our factory is located in Guanlan, Shenzhen, Guandong Province, about 1 hours by car from Baoan airport ; 2 hours by car from Guangzhou. Welcome to visit our factory!

  • OUR SERVICES

1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information

2400mm LED Linear Lighting System , 19200lm commercial LED lighting2400mm LED Linear Lighting System , 19200lm commercial LED lighting2400mm LED Linear Lighting System , 19200lm commercial LED lighting2400mm LED Linear Lighting System , 19200lm commercial LED lighting

2400mm LED Linear Lighting System , 19200lm commercial LED lighting
